Datasheet: WOER-SBRS-(3X)GLW (Update).pdf

Flexible, Thick Adhesive Lined Dual Wall Heat Shrinkable Tube is manufactured by co-extrusion of polyolefin and hot-melt adhesive. Designed to provide both insulation and sealing for protected articles. Used to protect bundles wires and metal tubes against water and moisture

Features:
1. Flexible, thick adhesive lined to bond to a wide variety of plastics, rubber and metals
2. Operating Temperature: -45℃～125℃
3. Shrinking Temperature: Start at 70℃, and shrunk totally at 125℃
4. Shrink Ratio: 3:1

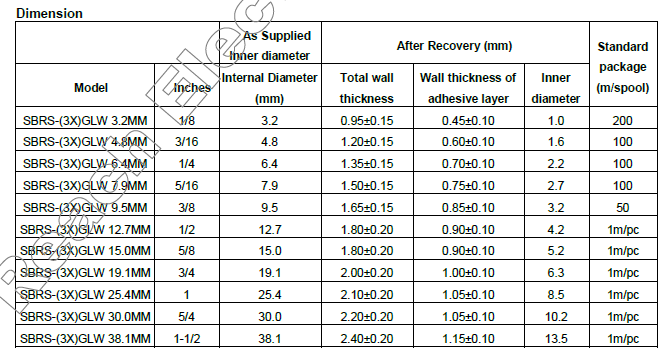

• Model: SBRS-(3X)GLW 12.7MM, SBRS-(3X)GLW 15.0MM, SBRS-(3X)GLW 19.1MM, SBRS-(3X)GLW 25.4MM, SBRS-(3X)GLW 3.2MM, SBRS-(3X)GLW 39.0MM, SBRS-(3X)GLW 4.8MM, SBRS-(3X)GLW 6.4MM, SBRS-(3X)GLW 7.9MM, SBRS-(3X)GLW 9.5MM, SBRS-(4X)G 32MM
