High Temperature Metal (SUS316) Mini Float Switch
In Stock
User Configurable NO or NC switch Action
These corrosion-resistant general industrial float switches are perfect for applications where space is a consideration. Made from rugged 316 stainless steel, these standard switches are ideal for high temperature, high pressure or corrosive conditions in a variety of applications. The switches are rated to a maximum temperature of 120~200°C and a maximum pressure of 70~170 PSIG, for selected models.

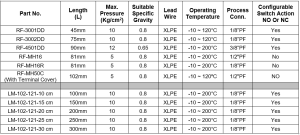

Specifications
Switching Capacity Max. – 50W SPST
Switching Voltage Max. – 240VAC / 200VDC
Switching Current Max. – 0.5A
Carry Current Max. – 1A

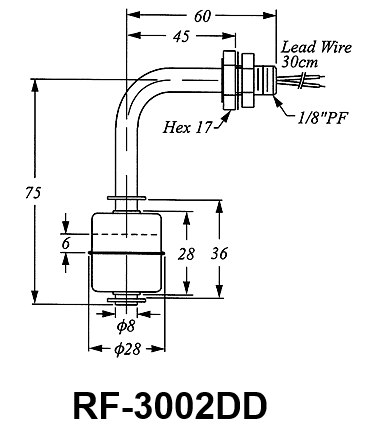

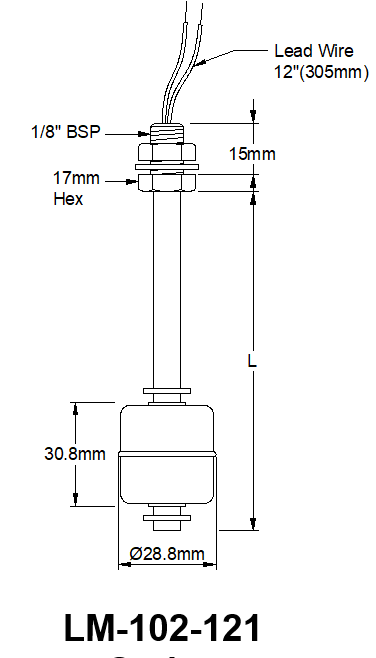

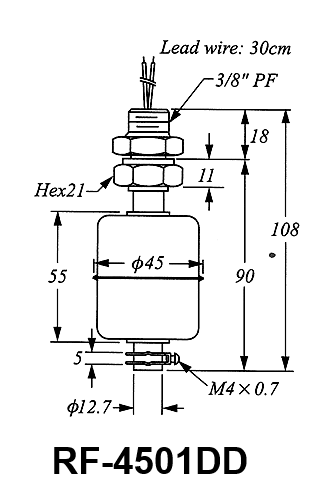

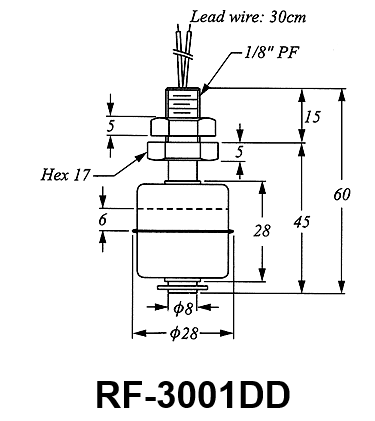

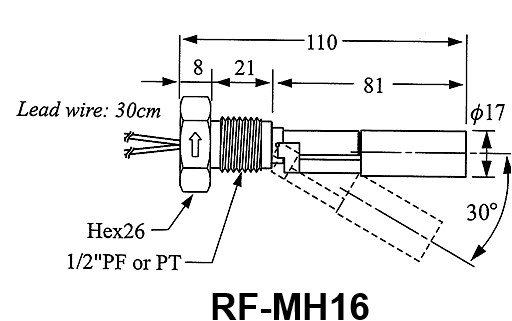

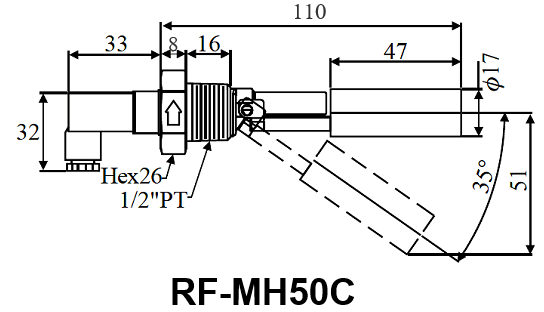

- Model: LM-102-121-10 cm, LM-102-121-15 cm, LM-102-121-20 cm, LM-102-121-25 cm, LM-102-121-30 cm, RF-3001DD, RF-3002DD, RF-4501DD, RF-MH16, RF-MH16R, RF-MH50C
SGD 30.00 – SGD 85.00Price range: SGD 30.00 through SGD 85.00
Guaranteed Safe Checkout
Product Variations
| Model | PKG. QTY | Price | |
|---|---|---|---|
| rf-3001dd | SGD 30.00 | ||
| rf-3002dd | SGD 32.00 | ||
| rf-4501dd | SGD 75.00 | ||
| rf-mh16 | SGD 80.00 | ||
| rf-mh16r | SGD 75.00 | ||
| rf-mh50c | SGD 85.00 | ||
| lm-102-121-10-cm | SGD 40.00 | ||
| lm-102-121-15-cm | SGD 45.00 | ||
| lm-102-121-20-cm | SGD 55.00 | ||
| lm-102-121-25-cm | SGD 58.00 | ||
| lm-102-121-30-cm | SGD 60.00 |
