HORIZONTAL MOUNTING MAGNETIC LEVEL SWITCHES Type: LHS/LF SERIES
LHS/LF series are manufactured specifically for horizontal mounting in a tank and or vessel.
They work well as high or low level control by a permanent magnet fitted in the tail piece of the float repels another magnet inside the switch housing which in turn operates an SPDT microswitch.
LF Series are suitable for Marine and Industrial Application Conforms with most requirement of all major Classification
Feature:
- Float Ball made of SUS #316, Other wetted parts are of SUS #304
- Aluminum Terminal Housing (IP65 Protection)
- Operating Temperature: -25 to 200ºC
- Contact Capacity: 5A 250VAC, SPDT (Com/NC/NO)
- Applications
- Petroleum Processing – Fuels, lubricating oils, hydraulic fluids, crude oil, fuel-water interfaces.
- Food Processing – Beverages, fruit juices, cooking oils.
- Pharmaceutical and Cosmetic – Liquids, emulsions, lotions, solutions.
- Marine Operations – Fuel oil, hydraulic fluid, bilge level alarms, sea water, cargo levels.
- Water Industry – Flood control, reservoir levels.

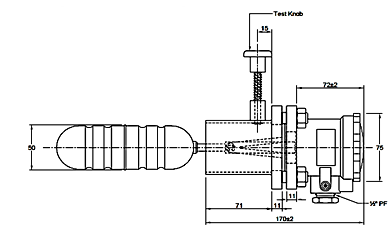

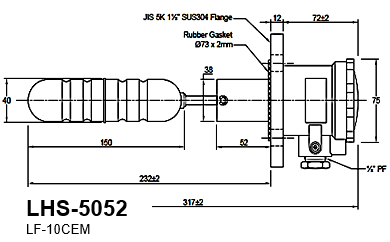

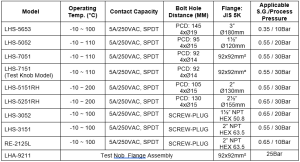

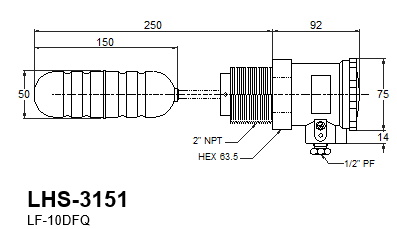

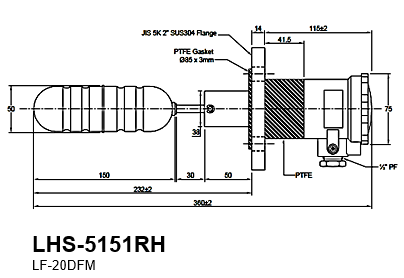

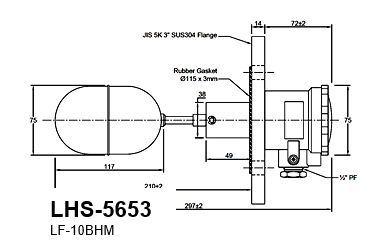

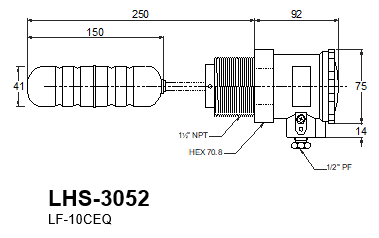

- Model: LHA-9211, LHS-3052, LHS-3151, LHS-5052, LHS-5151RH, LHS-5251RH, LHS-5653, LHS-7051, LHS-7151(Test Knob Model), RE-2125L
